Advanced Gel Doc System

GeneGnome XRQ

The new GeneGnomeXRQ is dedicated to chemiluminescence imaging. This system is built for high performance and automation and now features a next generation high quantum efficiency Syngene CCD camera for even greater sensitivity. A very simple set-up process means a single ‘click’ will automatically capture a quality image of any Western blot.

Learn More   |   Request Quote

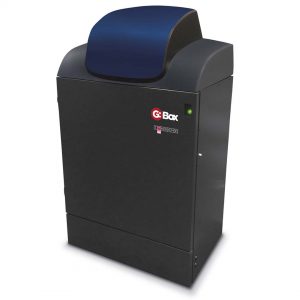

G:BOX Chemi (Chemi Imager)

For your complex fluorescence imaging and chemiluminescence imaging, Syngene has designed the high performance G:BOX range. The G:BOX can be configured with a choice of high resolution cooled 16-bit cameras, as well as different lighting and filter options making it excellent for your rapid DNA/RNA imaging, as well as chemiluminescence imaging.

Precise chemiluminescence imaging
You can use the G:BOX for precise chemiluminescence imaging using reagents such as ECL, CDP Star or others to accurately detect your protein expression.

Rapid DNA, RNA and protein gel imaging
For fluorescence imaging of DNA/RNA gels, you can use a G:BOX to visualise all commercially available DNA/RNA and protein gel stains.

Easy multiplex western blot imaging
You can fit specific Syngene band pass filters and our exclusive LED lighting modules into a G:BOX. When the LED lighting module is plugged in, the GeneSys software automatically selects the optimum combination of lighting and filters available, making imaging all commercial fluorescent western stains a simple task.

Accurate automated analysis
To automate the imaging of chemiluminescent blots, fluorescent gels and coloured western blots you have to capture one or multiple images of the blot or gel, a task which is easy with Syngene’s GeneSys software. You can analyse the images with Syngene’s GeneTools software which separates bands or spots and analyses them to automatically provide precise results in seconds.

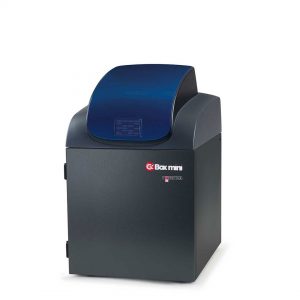

G:BOX mini

Multi fluorescence and chemiluminescence imaging system

G:BOX mini is a compact, multi-application imaging system for accurately imaging fluorescence and visible gels, multiplexed fluorescence westerns, stain-free gels and chemiluminescent blots. Fully integrated with single click computer controlled intuitive GeneSys software, you’ll get great results every time.

G:BOX mini features the option to use not just white LEDs but multi-colour, blue, green, red and infra-red high intensity LEDs which are up to 200 times brighter than standard LEDs, giving you faster captures and brilliant multiplex fluorescence images.

Combining a unique motor driven stage and cooled high resolution 6 or 9 megapixel camera means your G:BOX mini can generate true-to-life, accurate optical images, not just digitally enhanced ones. With a G:BOX mini you’ll see separate close chemi and fluorescent bands or spots even on complex gels and know they’re really part of your data.

With our guarantee of free software upgrades not just today but throughout your system’s life, your G:BOX mini will always have the latest imaging capabilities as new techniques come into the working lab.

Finally!! A compact imager with NO compromises for your chemi blots and DNA gels!

  • No compromise on resolution – Why settle at 6MP when you can get 9MP?
  • No compromise on sensitivity – Highest QE% on the market. (efficiency of light collection of chip)
  • No compromise on optical zooming – NO shelves to raise and lower your sample. No digital cropping
  • No compromise on camera stability – Camera doesn’t move. Platform precisely moves for zooming
  • No compromise on lighting uniformity – All lights and overlay applications available at all zooms.
  • No compromise on bench space – One of the most compact systems on the market!
  • No compromise on computing – Use your own PC, connect how you want and when you want.
  • No compromise on working space – Largest open space area for moving and accessing gels
